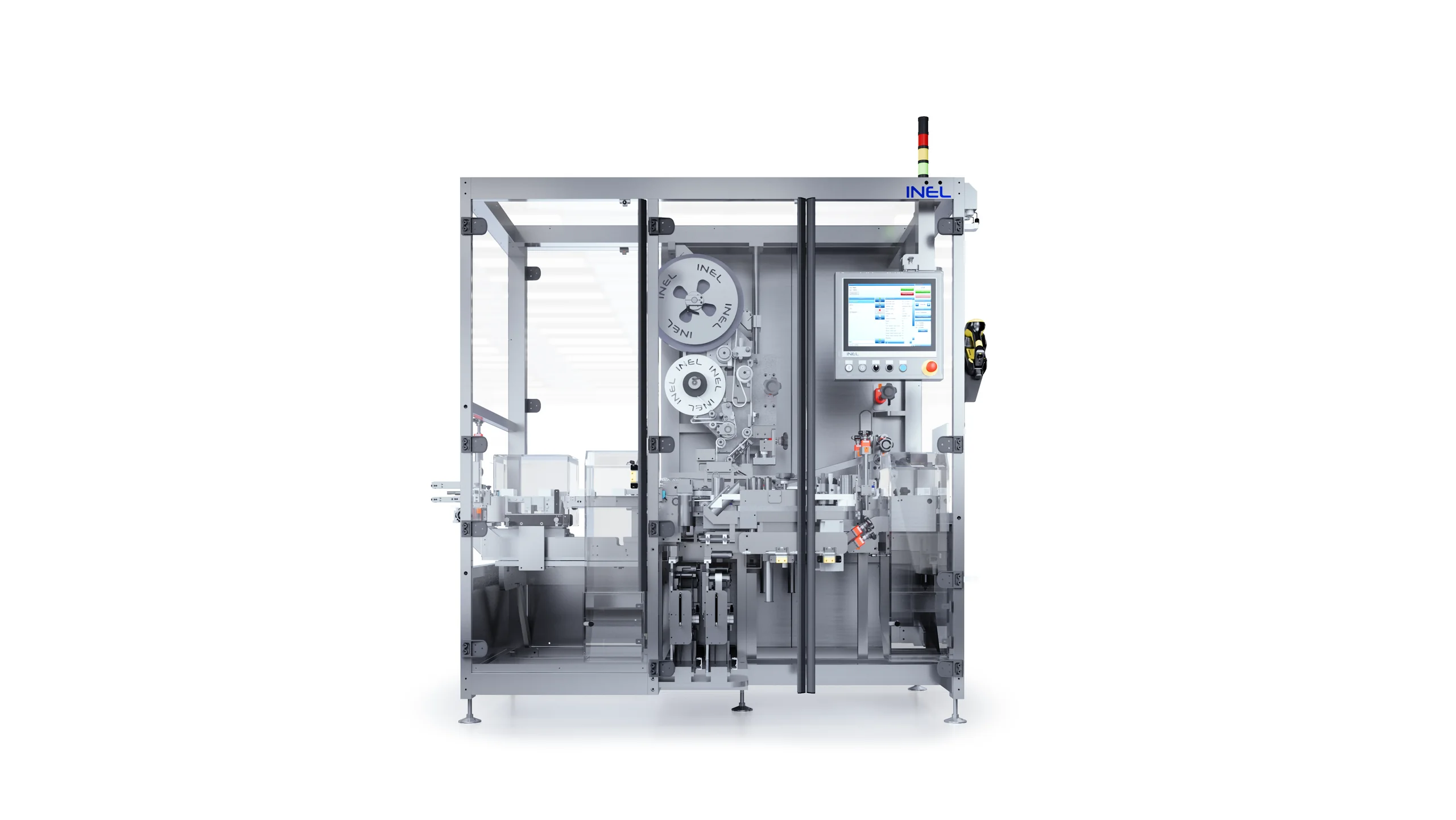

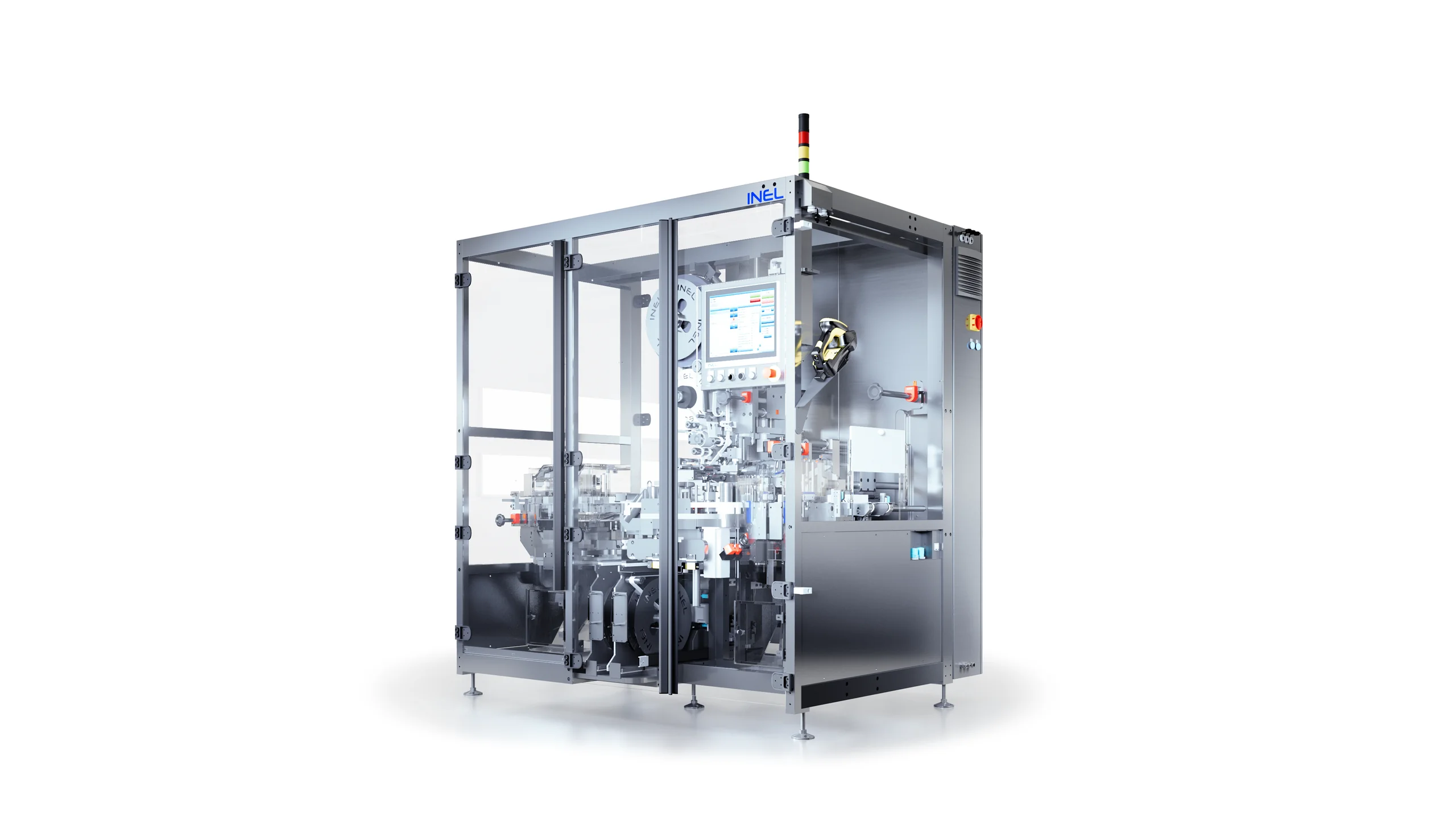

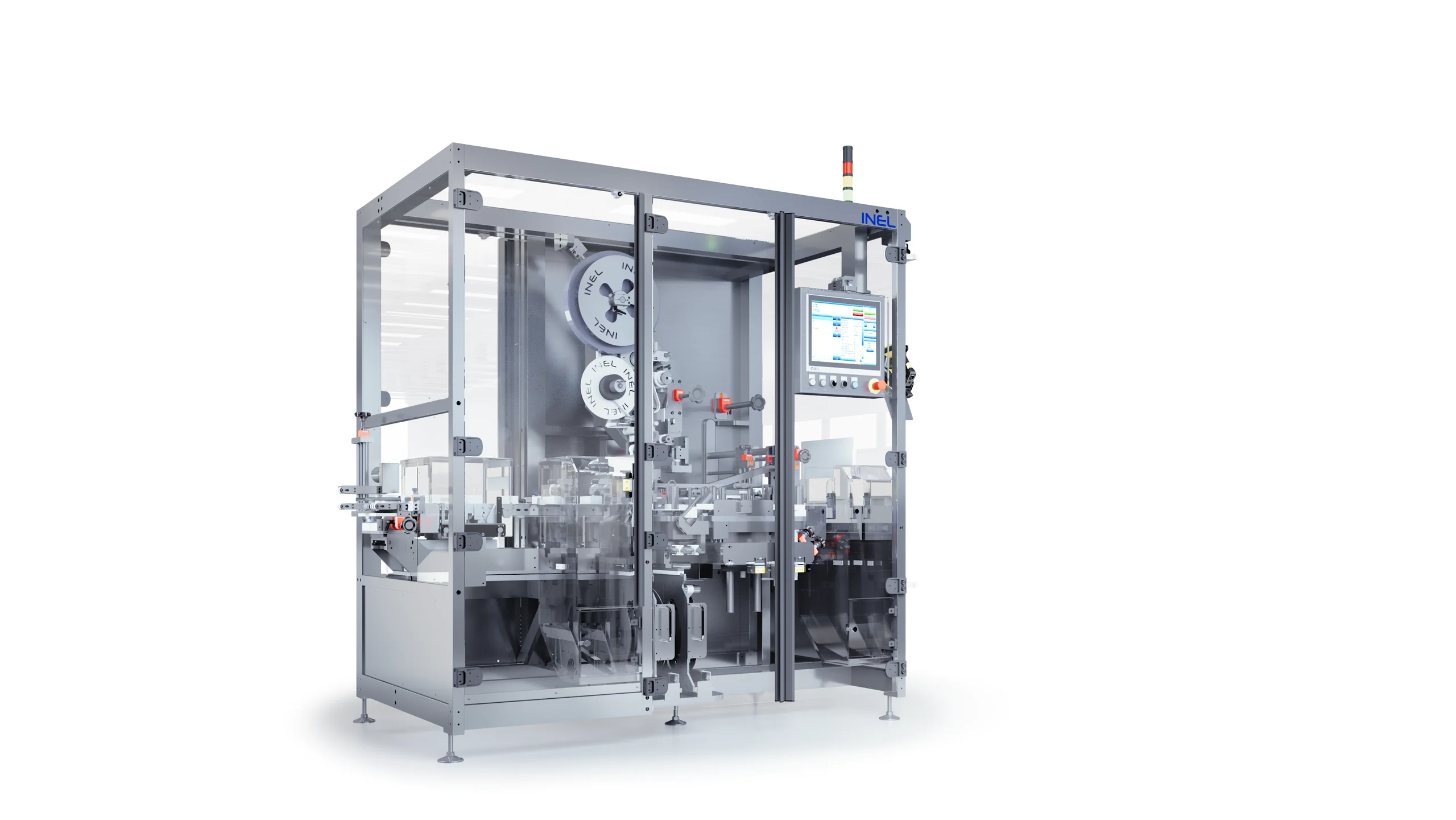

PV-1800 is a multi-function serialization unit for carton packaging that combines printing and verification of codes, line-level serialization management, checkweighing, tamper evident labeling and top labeling with verification. It is intended for applications where serialization must be combined with additional control and labeling functions in a single system.
PV-1800 enables:
Technically, the main value of the system is that it covers the serialization process together with additional control and labeling functions without the need for several separate stations.
PV-1800 is a multi-function serialization unit for carton packaging that combines printing and verification of codes, line-level serialization management, checkweighing, tamper evident labeling and top labeling with verification. It is intended for applications where serialization must be combined with additional control and labeling functions in a single system.
The system is suitable for integration into new or existing packaging lines, especially in regulated environments where traceability, additional unit control and labeling correctness are important.
Performance
Conveyor speed up to 60 m/min
Throughput up to 240 units/min | prolonged machine up to 300 units/min
Electrical data
Nominal voltage L1/N/PE 230V
Nominal frequency 50/60 Hz
Nominal current 16A
Pneumatics
Compressed air supply 6 bar approx. 10l/h, non-oiled
Mechanical / installation data
Working height 850 ± 50 mm
Weight approx. 900 kg
Supported carton dimensions
Unit dimensions (A × B × H) min–max (A) 35–120 × (B)15–130 × (H) 70–240 mm
PV-1800 enables:
Technically, the main value of the system is that it covers the serialization process together with additional control and labeling functions without the need for several separate stations.
These options are important mainly because of adaptation to packaging orientation, additional labeling requirements and the regulatory and documentation requirements of the project.
Performance
Conveyor speed up to 60 m/min
Throughput up to 240 units/min | prolonged machine up to 300 units/min
Electrical data
Nominal voltage L1/N/PE 230V
Nominal frequency 50/60 Hz
Nominal current 16A
Pneumatics
Compressed air supply 6 bar approx. 10l/h, non-oiled
Mechanical / installation data
Working height 850 ± 50 mm
Weight approx. 900 kg
Supported carton dimensions
Unit dimensions (A × B × H) min–max (A) 35–120 × (B)15–130 × (H) 70–240 mm
PV-1800 enables:
Technically, the main value of the system is that it covers the serialization process together with additional control and labeling functions without the need for several separate stations.
These options are important mainly because of adaptation to packaging orientation, additional labeling requirements and the regulatory and documentation requirements of the project.
