Print and Verify 600

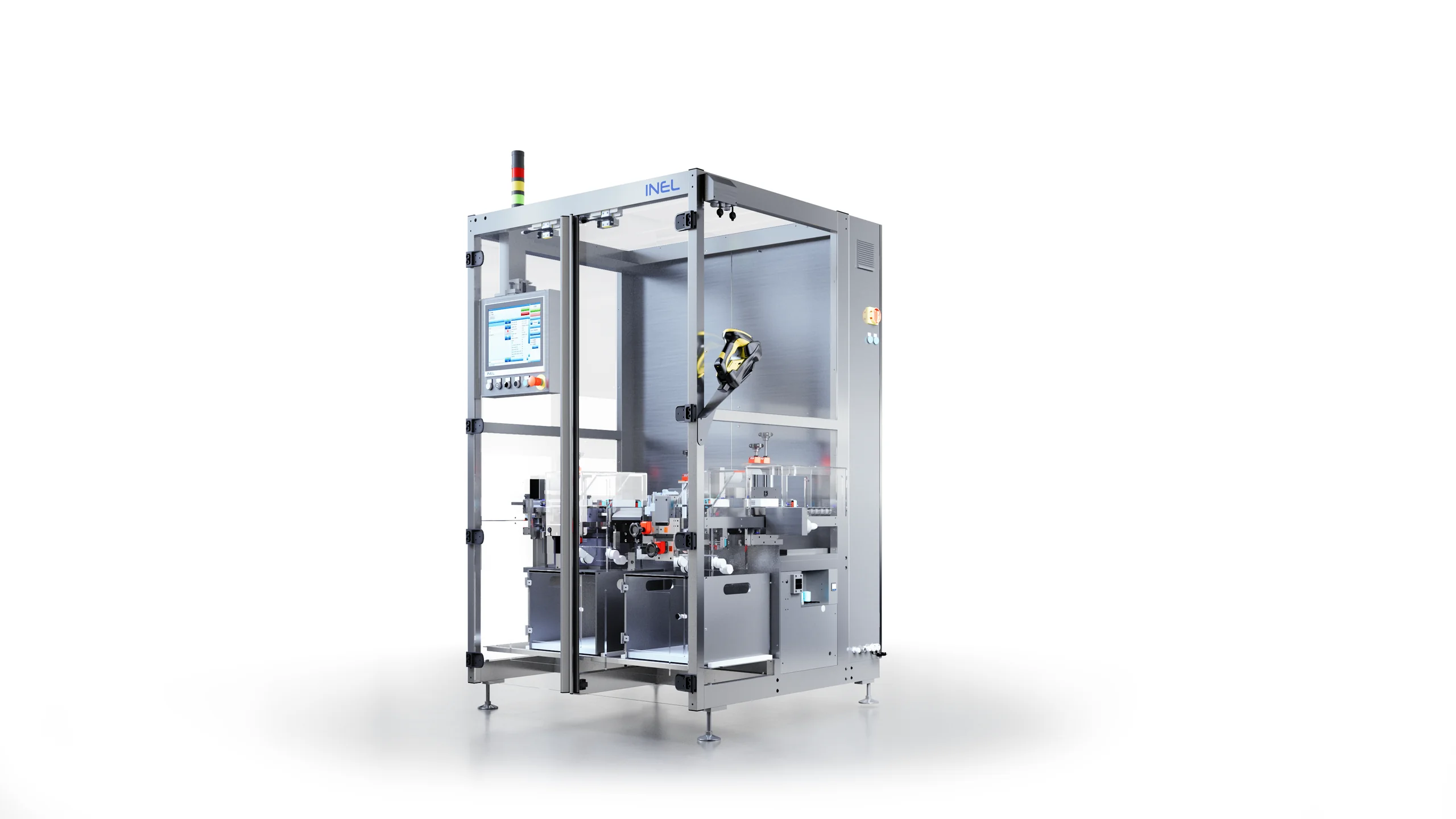

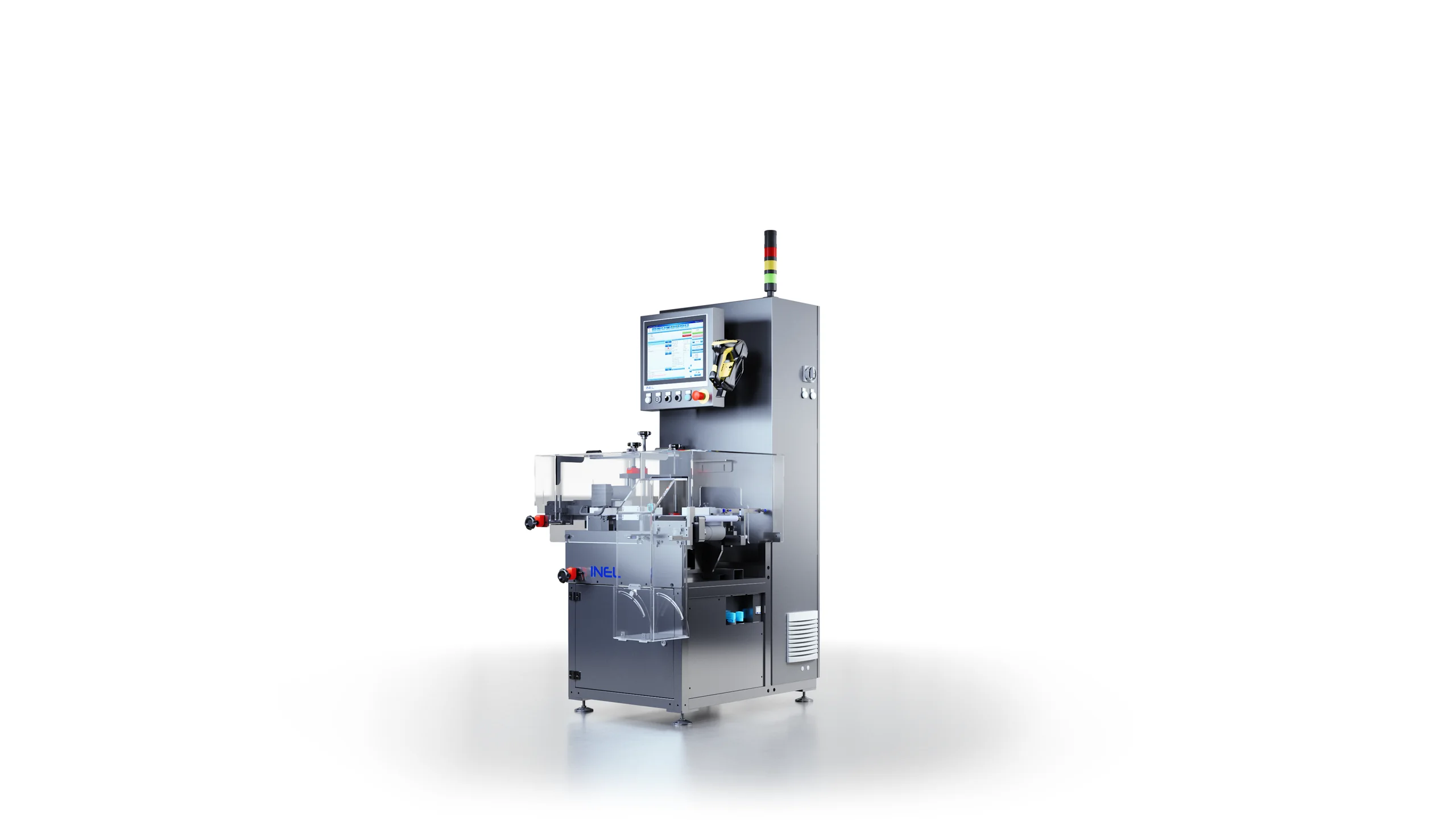

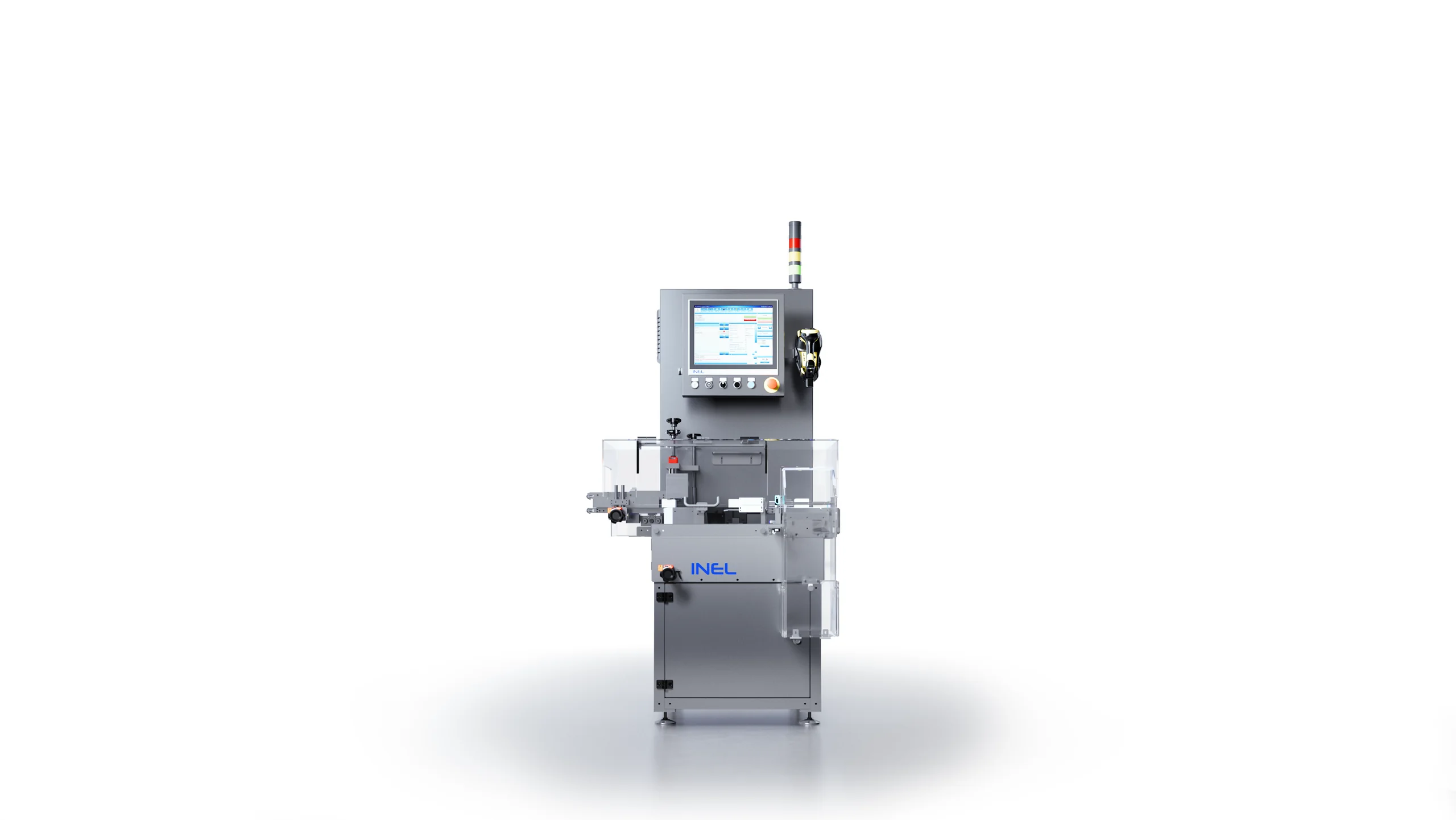

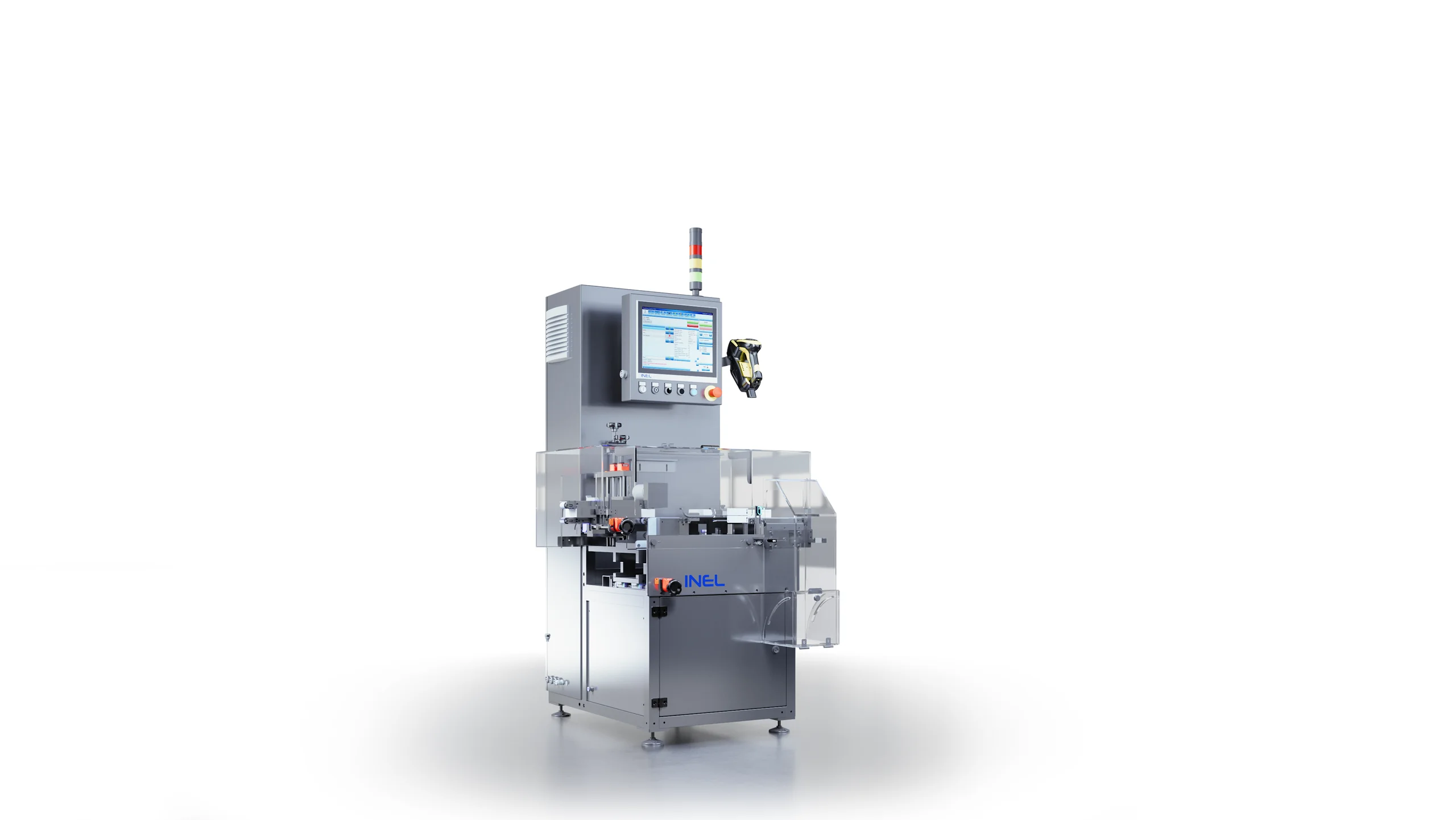

PV-600 is a serialization unit for printing, verification and checkweighing of carton packaging. The machine combines several functions in a single system: printing of serialization data, code and print verification, line-level serialization management and an integrated checkweigher.

PV-600

Print and Verify 600

DOWNLOAD BROCHURE

PV-600 enables:

printing of 1D and 2D codes
printing of human readable data
2D code verification
OCR/OCV inspection
line-level serialization management
connection with different site server systems
checkweighing of individual carton units
integration of multiple functions in one machine

Compared to a more basic print & verify solution, the additional checkweigher function is significant, enabling additional product control within the same process step.

More about this product

What you need to know about PV-600

It is a solution for lines where, in addition to serialization, weight control of each unit is required. The system is designed for integration into new or existing packaging lines, with a compact design and stable operation in real production environments.

Compact size, ideal for lines with limited space, allowing easy integration into new and existing packaging lines
Single spindle adjustment of all components in lateral direction adapting to box dimensions

Performance
Conveyor speed: up to 60 m/min
Throughput: up to 240 units/min

Electrical data
Nominal voltage: L1/N/PE 230V
Nominal frequency: 50/60 Hz
Nominal current: 16A

Pneumatics
Compressed air supply: 6 bar approx. 10l/h, non-oiled

Mechanical / installation data
Working height: 850 ± 50 mm
Weight approx.: 300 kg

Supported carton dimensions
Carton dimensions (A x B x H): min-max (A) 35-120 × (B)18-100 × (H) 60-180 mm

PV-600 enables:

printing of 1D and 2D codes
printing of human readable data
2D code verification
OCR/OCV inspection
line-level serialization management
connection with different site server systems
checkweighing of individual carton units
integration of multiple functions in one machine

Compared to a more basic print & verify solution, the additional checkweigher function is significant, enabling additional product control within the same process step.

Compact machine design for lines with limited space
Easy integration into new and existing packaging lines
Multiple process functions in one system
Single spindle adjustment of all components in lateral direction
Adjustment according to box dimensions
PLC and PC controlled system
User-friendly HMI
Industrial ink-jet printing technology
Integrated checkweigher
Suitable for regulated environments

up to 3 print-heads on one side
maximum print height 37.5 mm
printing from different sides of the packaging
printing on the front, back or several sides at the same time
extended technical documentation
extended validation documentation

This is important mainly with regard to adapting to the application, packaging orientation and customer documentation requirements.

Easy integration into new and existing packaging lines
Line level serialization system
Easy connection with different site servers
Integrated checkweigher within the same system
21 CFR Part 11 compliant
Suitable for technical and validation documentation support
Designed for serialization processes in regulated industries

Performance
Conveyor speed: up to 60 m/min
Throughput: up to 240 units/min

Electrical data
Nominal voltage: L1/N/PE 230V
Nominal frequency: 50/60 Hz
Nominal current: 16A

Pneumatics
Compressed air supply: 6 bar approx. 10l/h, non-oiled

Mechanical / installation data
Working height: 850 ± 50 mm
Weight approx.: 300 kg

Supported carton dimensions
Carton dimensions (A x B x H): min-max (A) 35-120 × (B)18-100 × (H) 60-180 mm

PV-600 enables:

printing of 1D and 2D codes
printing of human readable data
2D code verification
OCR/OCV inspection
line-level serialization management
connection with different site server systems
checkweighing of individual carton units
integration of multiple functions in one machine

Compared to a more basic print & verify solution, the additional checkweigher function is significant, enabling additional product control within the same process step.

Compact machine design for lines with limited space
Easy integration into new and existing packaging lines
Multiple process functions in one system
Single spindle adjustment of all components in lateral direction
Adjustment according to box dimensions
PLC and PC controlled system
User-friendly HMI
Industrial ink-jet printing technology
Integrated checkweigher
Suitable for regulated environments

up to 3 print-heads on one side
maximum print height 37.5 mm
printing from different sides of the packaging
printing on the front, back or several sides at the same time
extended technical documentation
extended validation documentation

This is important mainly with regard to adapting to the application, packaging orientation and customer documentation requirements.

Easy integration into new and existing packaging lines
Line level serialization system
Easy connection with different site servers
Integrated checkweigher within the same system
21 CFR Part 11 compliant
Suitable for technical and validation documentation support
Designed for serialization processes in regulated industries
