Print and Verify 500

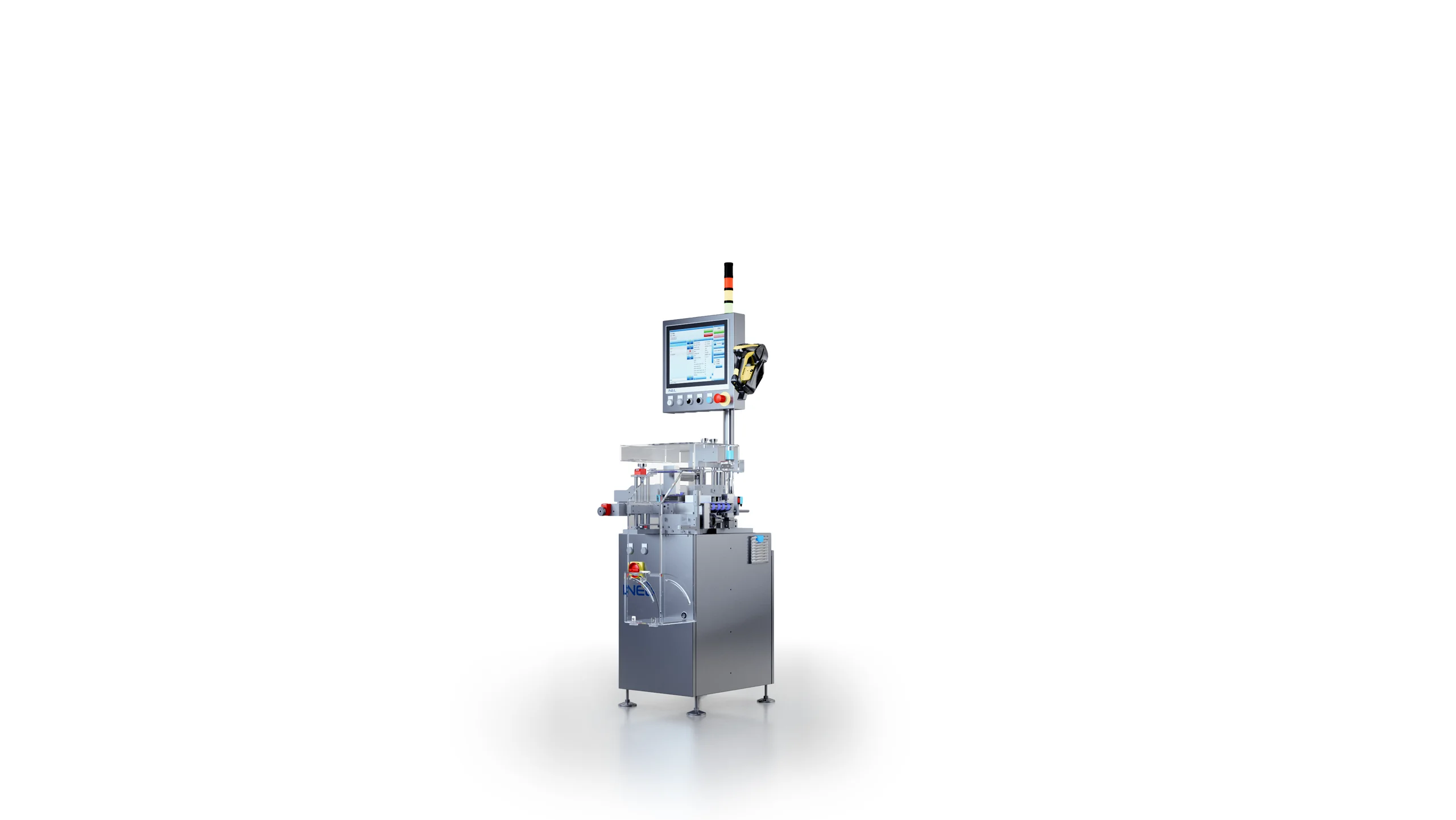

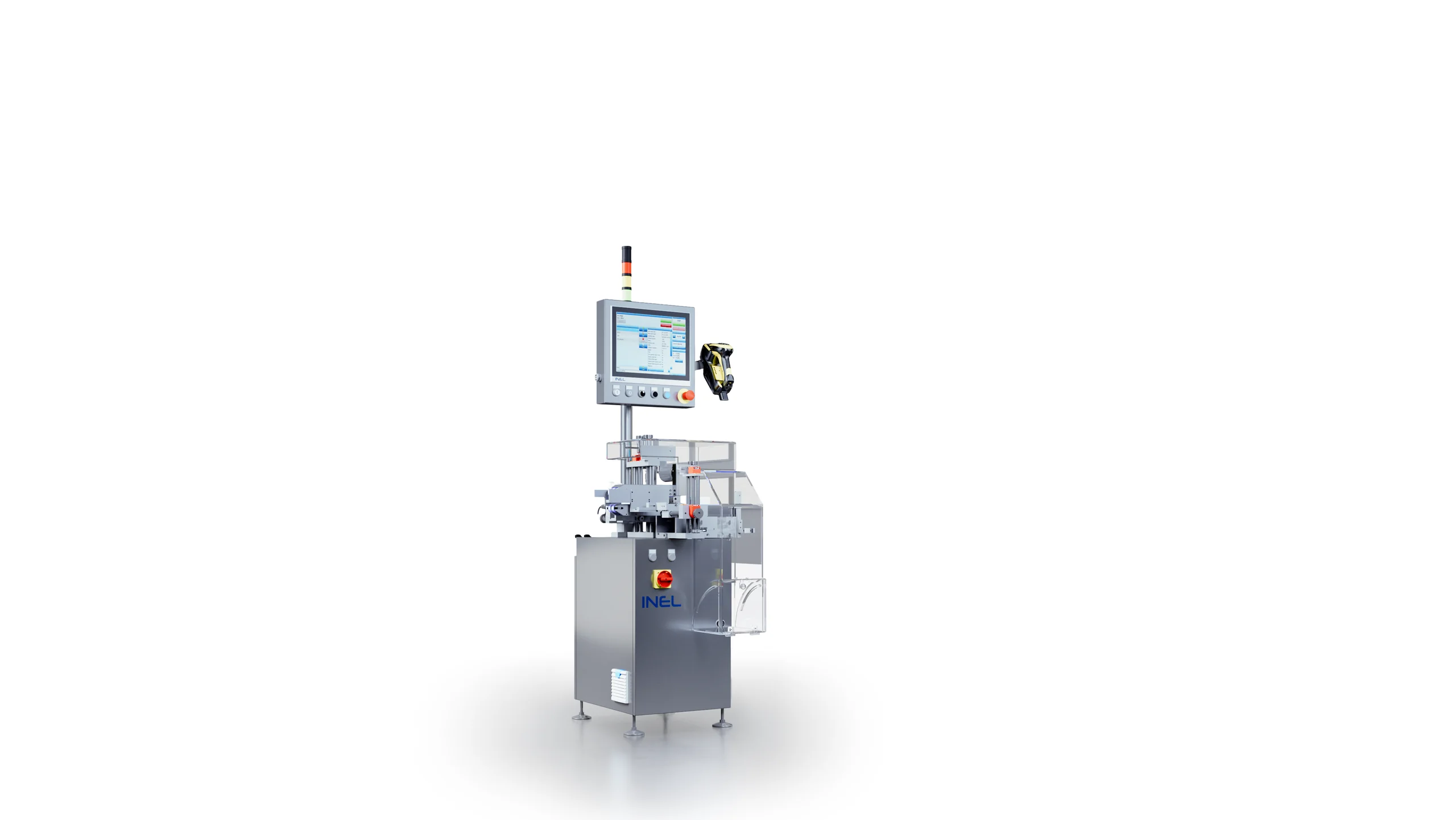

The PV-500 is a compact serialization unit for printing and verifying codes on carton packaging. It is intended for integration into new or existing packaging lines where serialization data needs to be printed on each unit, print accuracy checked and serialization management ensured at the line level.

PV-500

Print and Verify 500

DOWNLOAD BROCHURE

PV-500 enables:

printing of 1D and 2D codes
printing of human readable data
verification of printed 2D codes
OCR/OCV print inspection
line-level serialization management
connection with different site server systems
integration into new or existing packaging lines

It is a solution that covers the basic serialization process at item level: printing + verification + line-level data management.

More about this product

What you need to know about PV-500

The system combines printing, verification and line level serialization management in one device, making it suitable for applications where traceability at the individual product level and connection to higher-level systems are important.

Compact size, ideal for lines with limited space, allowing easy integration into new and existing packaging lines
Single spindle adjustment of all components in lateral direction adapting to box dimensions

Performance
Conveyor speed: up to 60 m/min
Throughput: up to 400 units/min

Electrical data
Nominal voltage: L1/N/PE 230V
Nominal frequency: 50/60 Hz
Nominal current: 16A

Pneumatics
Compressed air supply: 6 bar approx. 10l/h, non-oiled

Mechanical / installation data
Working height: 850 ± 50 mm
Weight approx.: 190 kg

Supported carton dimensions
Carton dimensions (A x B x H): min-max (A) 35-120 × (B)18-100 × (H) 60-180 mm

PV-500 enables:

printing of 1D and 2D codes
printing of human readable data
verification of printed 2D codes
OCR/OCV print inspection
line-level serialization management
connection with different site server systems
integration into new or existing packaging lines

It is a solution that covers the basic serialization process at item level: printing + verification + line-level data management.

Compact machine design for lines with limited space
Easy integration into new and existing packaging lines
Single spindle adjustment of all components in lateral direction
Adjustment according to box dimensions
PLC and PC controlled system
User-friendly HMI

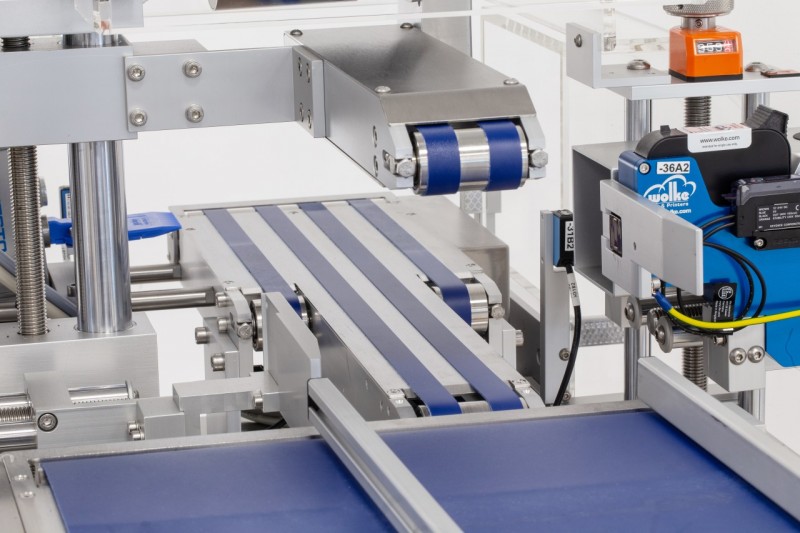

Industrial ink-jet printing technology
Combined printing and verification in one system
Suitable for regulated environments

up to 3 print-heads on one side
maximum print height 37.5 mm
printing from different sides of the packaging (printing on the back, front or several sides at the same time)
extended technical documentation
extended validation documentation

These options are worth highlighting as proof of system flexibility with respect to customer requirements, packaging orientation and serialization requirements.

Easy integration into new and existing packaging lines
Line level serialization system
Easy connection with different site servers
21 CFR Part 11 compliant
Suitable for technical and validation documentation support
Designed for serialization processes in regulated industries

Performance
Conveyor speed: up to 60 m/min
Throughput: up to 400 units/min

Electrical data
Nominal voltage: L1/N/PE 230V
Nominal frequency: 50/60 Hz
Nominal current: 16A

Pneumatics
Compressed air supply: 6 bar approx. 10l/h, non-oiled

Mechanical / installation data
Working height: 850 ± 50 mm
Weight approx.: 190 kg

Supported carton dimensions
Carton dimensions (A x B x H): min-max (A) 35-120 × (B)18-100 × (H) 60-180 mm

PV-500 enables:

printing of 1D and 2D codes
printing of human readable data
verification of printed 2D codes
OCR/OCV print inspection
line-level serialization management
connection with different site server systems
integration into new or existing packaging lines

It is a solution that covers the basic serialization process at item level: printing + verification + line-level data management.

Compact machine design for lines with limited space
Easy integration into new and existing packaging lines
Single spindle adjustment of all components in lateral direction
Adjustment according to box dimensions
PLC and PC controlled system
User-friendly HMI
Industrial ink-jet printing technology
Combined printing and verification in one system
Suitable for regulated environments

up to 3 print-heads on one side
maximum print height 37.5 mm
printing from different sides of the packaging (printing on the back, front or several sides at the same time)
extended technical documentation
extended validation documentation

These options are worth highlighting as proof of system flexibility with respect to customer requirements, packaging orientation and serialization requirements.

Easy integration into new and existing packaging lines
Line level serialization system
Easy connection with different site servers
21 CFR Part 11 compliant
Suitable for technical and validation documentation support
Designed for serialization processes in regulated industries
