Automatic Case Packer

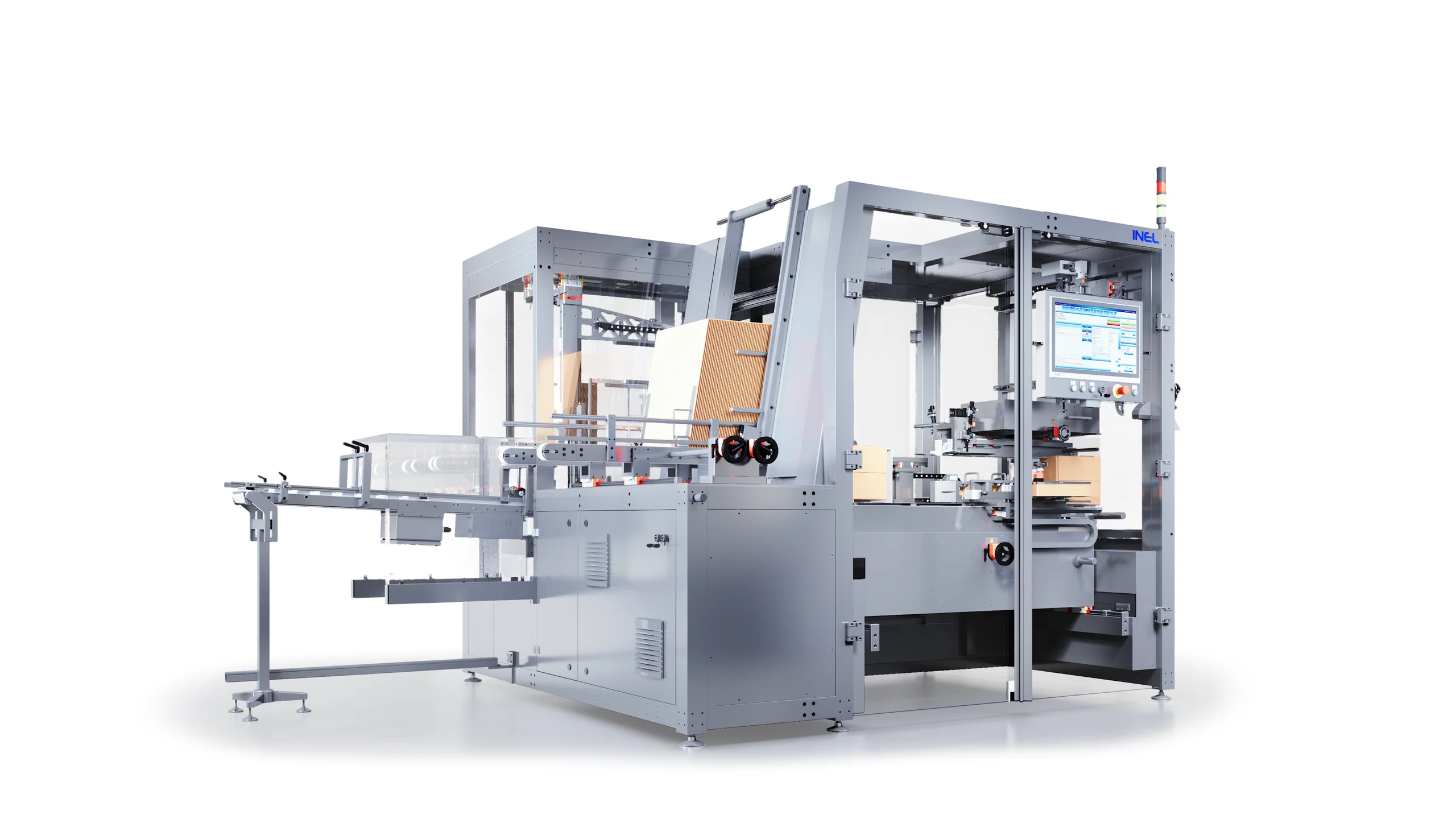

ACP is an automatic case packer — a compact and fully automated solution for packing cartons into transport cases. The machine is designed as an ergonomic, user-friendly solution for efficient operation, enabling quick format changeover with a minimal number of format parts.

ACP

Automatic Case Packer

DOWNLOAD BROCHURE

ACP enables:

automatic packing of cartons into the case
closing and taping unit
software for aggregation managing
large reading surface up to 600 × 400 mm
Print & Apply system for printing and labelling cases
camera verification system for the applied label on a case
transport system for redirection of good and bad units to the proper accumulation/rejection lane
different label application position options
software for pallet aggregation managing
printing of pallet labels and manual application
collaborative robot for palletization
hand scanner for parent label reading
custom transport system design (accumulation and rejection conveyor)
data exchange with line controller

More about this product

What you need to know about ACP

The system includes a transport system with case packing, closing and taping functions. Operation is via a single wide-screen HMI for machine automation and optionally for aggregation.

Capacity is up to 350 cartons per minute, depending on carton and case layouts.

Performance
Capacity up to 350 cartons / min
depends on carton and case layouts

Electrical data
Nominal voltage: L1/L2/L3/N/PE 400 V
Nominal frequency: 50/60 Hz
Nominal current: 25 A

Pneumatics
Compressed air supply: 6 bar (non-oiled)

Integration & compliance
Single wide screen HMI for machine automation and optional aggregation
Data exchange with line controller
21 CFR Part 11 compliant

ACP enables:

automatic packing of cartons into the case
closing and taping unit
software for aggregation managing
large reading surface up to 600 × 400 mm
Print & Apply system for printing and labelling cases
camera verification system for the applied label on a case
transport system for redirection of good and bad units to the proper accumulation/rejection lane
different label application position options
software for pallet aggregation managing
printing of pallet labels and manual application
collaborative robot for palletization
hand scanner for parent label reading
custom transport system design (accumulation and rejection conveyor)
data exchange with line controller

Compact and fully automated case packing solution
Ergonomic user friendly machine for efficient operation
Ready for quick change over
Minimum format parts required
Transport system with case packing, closing and taping unit
Single wide screen HMI for machine automation and optional aggregation
Capacity up to 350 cartons / min
21 CFR Part 11 compliant

Other options and modification available on request

Performance
Capacity up to 350 cartons / min
depends on carton and case layouts

Electrical data
Nominal voltage: L1/L2/L3/N/PE 400 V
Nominal frequency: 50/60 Hz
Nominal current: 25 A

Pneumatics
Compressed air supply: 6 bar (non-oiled)

Integration & compliance
Single wide screen HMI for machine automation and optional aggregation
Data exchange with line controller
21 CFR Part 11 compliant

ACP enables:

automatic packing of cartons into the case
closing and taping unit
software for aggregation managing
large reading surface up to 600 × 400 mm
Print & Apply system for printing and labelling cases
camera verification system for the applied label on a case
transport system for redirection of good and bad units to the proper accumulation/rejection lane
different label application position options
software for pallet aggregation managing
printing of pallet labels and manual application
collaborative robot for palletization
hand scanner for parent label reading
custom transport system design (accumulation and rejection conveyor)
data exchange with line controller

Compact and fully automated case packing solution
Ergonomic user friendly machine for efficient operation
Ready for quick change over
Minimum format parts required
Transport system with case packing, closing and taping unit
Single wide screen HMI for machine automation and optional aggregation
Capacity up to 350 cartons / min
21 CFR Part 11 compliant

Other options and modification available on request
